SKU:Code: 360-228

Item priced on application.

Request a Price

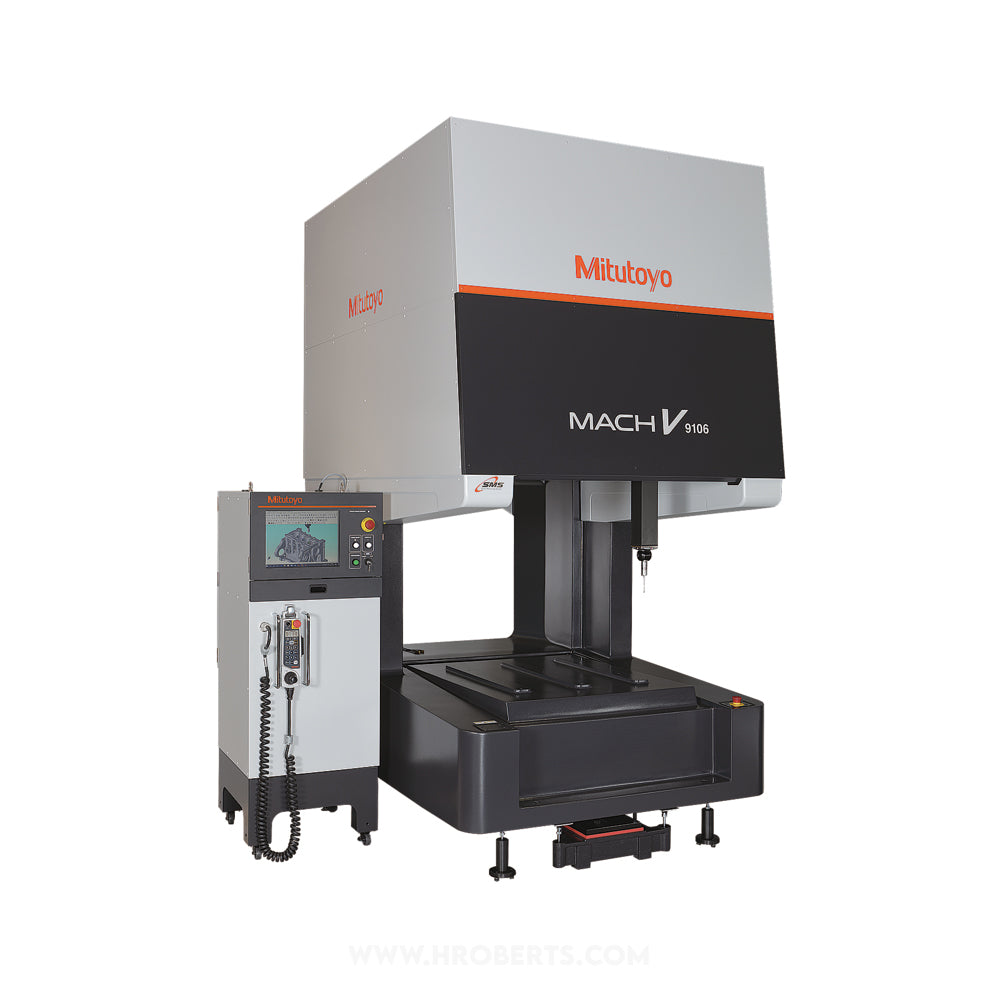

The MACH-V 9106 is a vertical spindle type coordinate measuring machine and is designed for fast and precise inline measurement. It grants outstanding throughput will allow you to boost up your measuring process. His design is so chosen that work pieces can be conveyed through the CMM either in front/back or left/right. This makes it a very flexible system to integrate. Also it can provide pre/post machining feedback to your machine tools for process tuning.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • range XYZ Range 900 x 1000 x 600mm
  • Higher speed and accuracy with barycentric drive
  • Improved dust resistance by installing all drive system and scale units in the dust-tight enclosure on the machine top
  • Control unit and PC are installed in the dust-tight rack
  • Space-saving design helps installation in a production line
  • Flexible loading options due open access to the measuring area
  • Ease-of-maintenance construction and air-free operation using high accuracy linear ball bearing
  • Temperature compensation from 5° to 35°C
  • Glass scale with high resolution 0,1 μm
  • Safety joystick box with deadman switch and speed adjustment
  • UC400K controller supporting SMS functionality (Smart Measuring System)
