Tesa

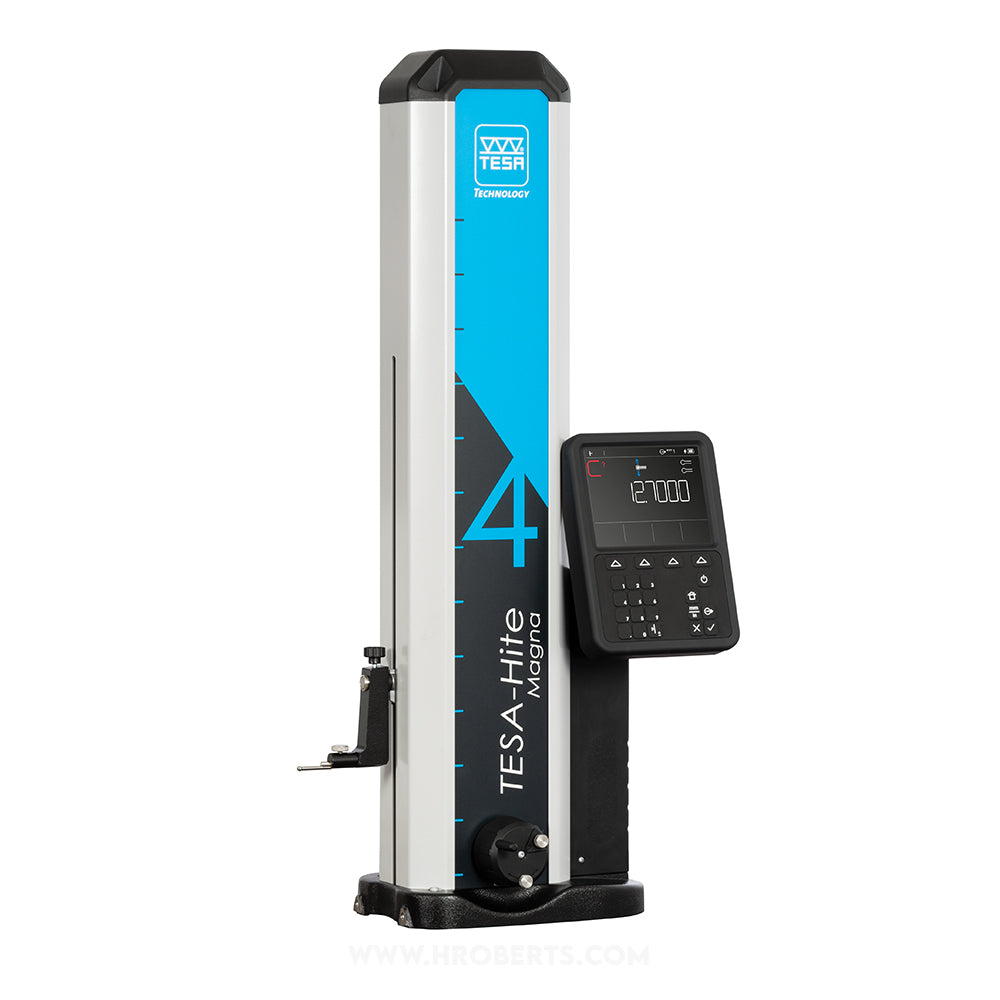

00730082 Tesa-Hite Magna 400 Digital Height Gauge, Range 0 - 415mm / 0 - 16", Range of Application 0 - 570mm / 0 - 22", Resolution 0.01mm, 0.005mm, 0.001mm / 0.001", 0.0002", 0.0001"

SKU:Code: TESA-00730082

Sale Sold out Regular price £2,611.80
Sale Sold out Sale price £2,611.80 Regular price £2,902.00
Excl. VAT
Tesa-Hite Magna 400 Digital with manual displacement
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Measuring
  • range 0-415mm / 0-16"
  • display type LCD Display with function symbols and buttons
  • resolution 0.01 / 0.005 / 0.001mm
  • accuracy 0.008μm
  • data output Yes
  • measuring force 1.5 ± 0.5 N
  • data storage Via USB
  • max permissible errors 0.008μm
  • repeatability 3μm
  • frontal squareness deviation -
  • power supply 240v
  • mass 15kg
  • stored data No
  • stored programs No
  • battery Yes
  • autonomy Up to 60 hours
  • drive method Manual
  • power supply 240v
  • suspension No
  • multiple references 1
  • programmable No
  • tolerances No
  • preset function Yes
  • repeatability on bore 5μm
  • repeatability on plane 3μm
  • fine adjustment Yes
  • dust cover Optional
  • setting master Yes
  • temperature compensation No
  • min max delta Yes
  • statistics No
description

Equipped with the Magna--System measuring system, these 1D manual height gauges are particularly suitable for harsh conditions.
Thanks to their robustness and their high protection level, they are very robust and specifically designed for rough production environments where a high penetration of dust particles and the frequent splashing of liquids (water, oil etc.) are common.
