Tesa

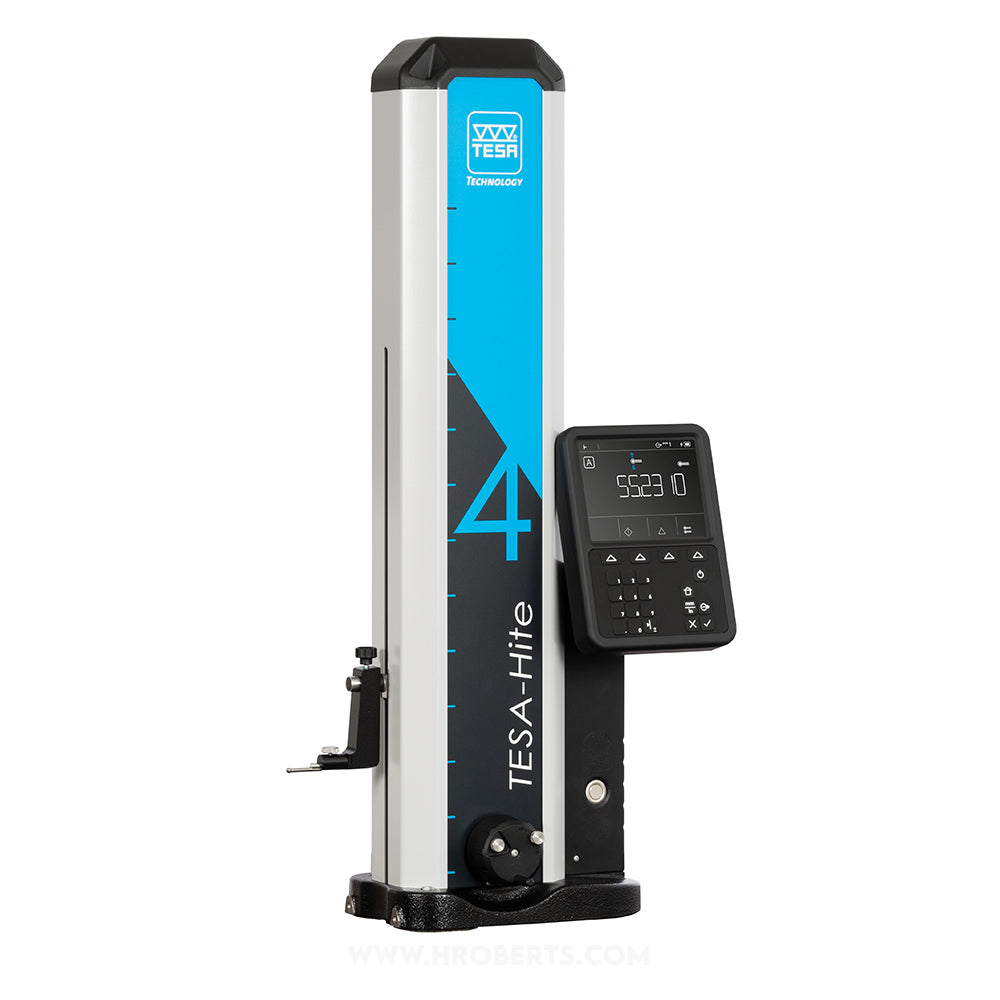

00730084 Tesa-Hite 400 Digital Height Gauge, Range 0 - 415mm / 0 - 16", Range of Application 0 - 570mm / 0 - 22", Resolution 0.01mm, 0.001mm, 0.0001mm / 0.001", 0.0001", 0.00001"
SKU:Code: TESA-00730084
Sale
Sold out
Regular price
£3,671.10
Sale
Sold out
Sale price
£3,671.10
Regular price
£4,079.00
Excl. VAT
Tesa-Hite 400 Digital with manual displacement and air cushion
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Measuring
- range 0-415mm / 0-16"
- display type LCD Display with function symbols and buttons
- resolution 0.01 / 0.001 / 0.0001mm
- accuracy 2.5+4L/1000
- data output Yes
- measuring force 1.5 ± 0.5 N
- data storage Via USB
- max permissible errors 2.5+4L/1000
- repeatability 2μm
- frontal squareness deviation 9μm
- power supply 240v
- mass 24kg
- stored data No
- stored programs No
- battery Yes
- autonomy Up to 60 hours
- drive method Manual
- power supply 240v
- suspension Air cushion
- multiple references 1
- programmable No
- tolerances No
- preset function Yes
- repeatability on bore 3μm
- repeatability on plane 2μm
- fine adjustment Yes
- dust cover Optional
- setting master Yes
- temperature compensation No
- min max delta Yes
- statistics No
description
description
Tesa TESA-HITE Brochure
This manual 1D height gauge with its refined panel and its easily-accessible software is typically used in workshops. It focuses on the main functions necessary for quick measurements and immediate access to the results.
Its optical reading system offers users greater accuracy, without having to compromise on its long-term reliability.
