Trimos

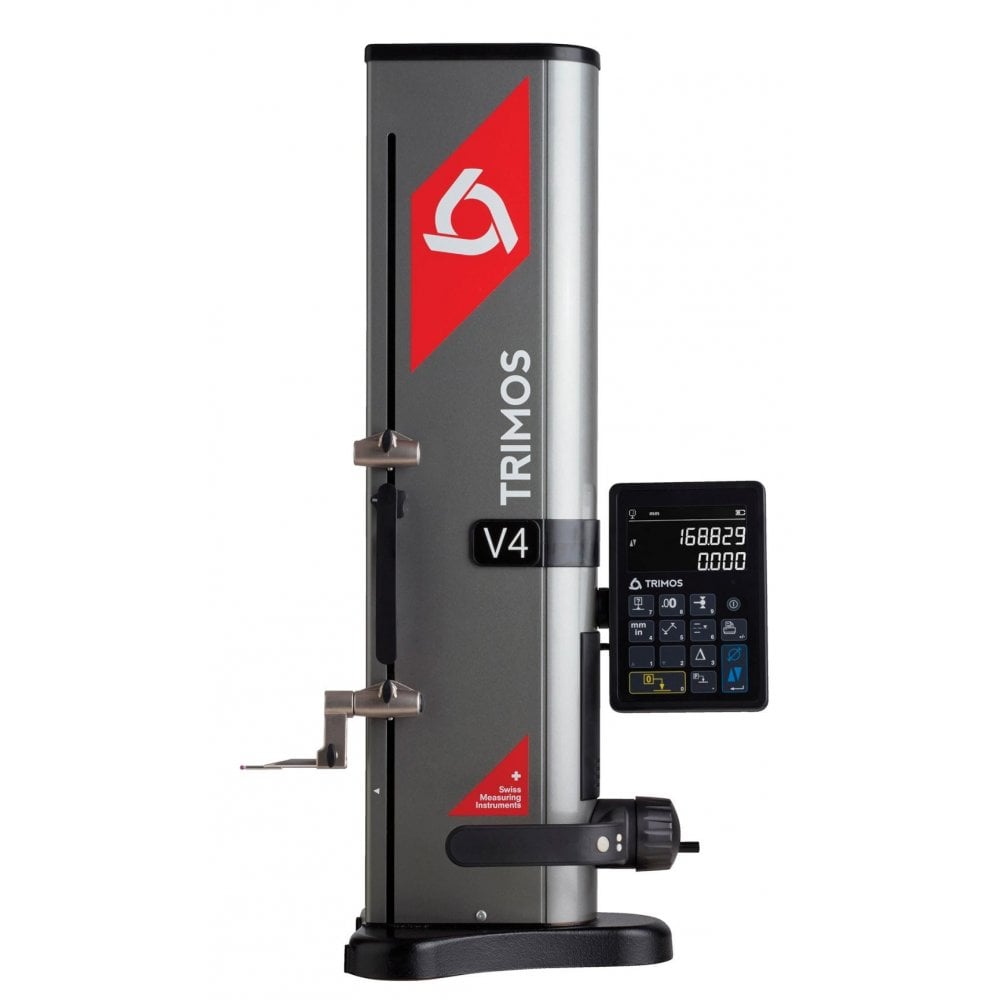

20-V4-400 Digital Height Gauge V4 Range 0 - 407mm / 0 - 16" with Extension 0 - 719mm / 0 - 28", Maximum Resolution 0.001mm / 0.00005" with Air Cushion

SKU:Code: 20-V4-400

Sale Sold out Regular price £3,899.03
Sale Sold out Sale price £3,899.03 Regular price £3,999.00
Excl. VAT
V4 Series Height gauge with air cushion
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
Specification
  • type Measuring
  • range 0-407mm / 0-16"
  • display type Digital Touch Screen Black Mask
  • resolution 0.001mm / 0.00005"
  • accuracy 4.5μm
  • data output Yes
  • measuring force 0.75 - 1.5N
  • data storage No
  • max permissible errors 4.5μm
  • repeatability 2μm
  • frontal squareness deviation 10μm
  • power supply 240v
  • mass 21kg
  • stored data No
  • stored programs No
  • battery Yes
  • autonomy Up To 20 hours
  • drive method Manual
  • power supply 240v
  • suspension Air cushion
  • multiple references Max 9
  • programmable No
  • tolerances No
  • preset function Yes
  • repeatability on bore 4μm
  • repeatability on plane 2μm
  • fine adjustment Optional
  • dust cover Optional
  • setting master Yes
  • temperature compensation No
  • min max delta Yes
  • statistics No
description
Trimos V3 and V4

The height gauge model V4 has been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they will guarantee a robust, precise and reliable product. The display unit provides functions that are directly accessible and depicted with symbols easy to understand.
This allows for easy and quick handling even by unqualified personnel. The large 2-line Black Mask display offers an exceptional contrast in all lighting conditions, a unique characteristic on the market, and is equipped with a second probe holder, and air cushion for easy movement around the measuring table.
