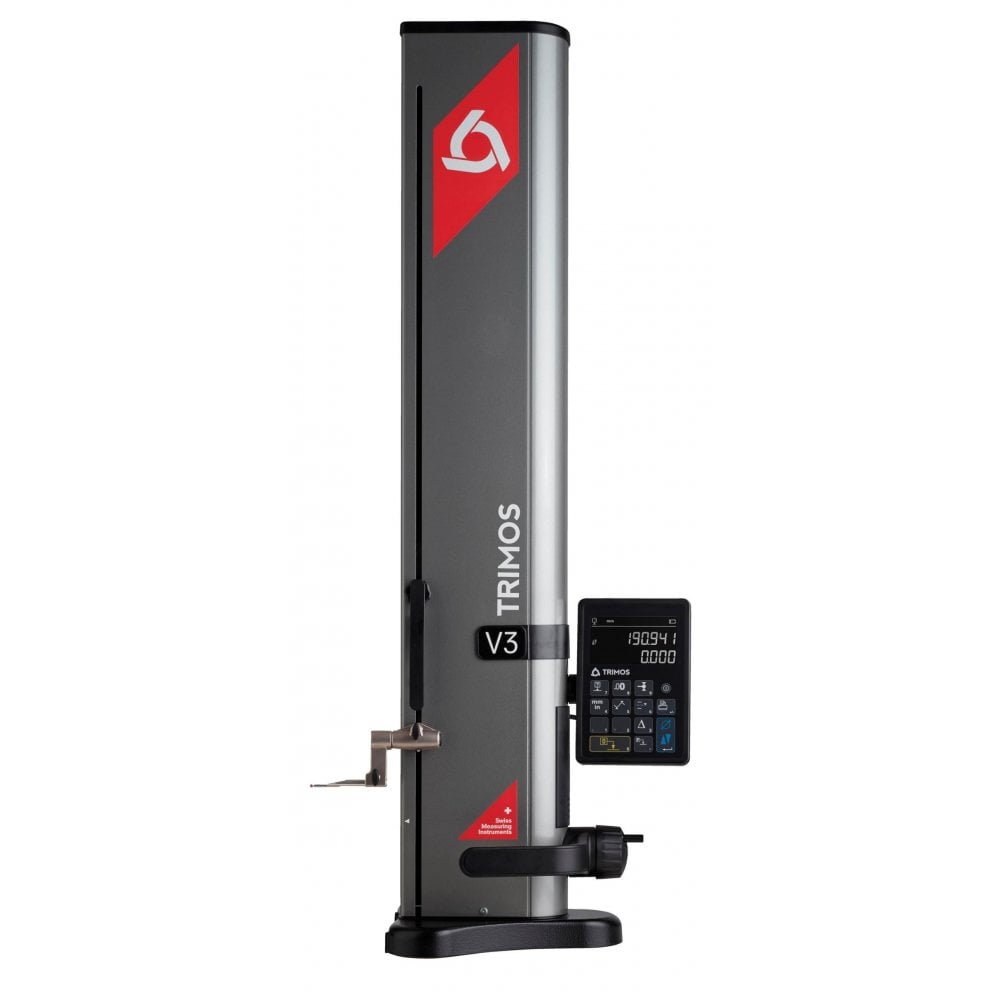

20-V3-700 Digital Height Gauge V3 Range 0 - 508mm / 0 - 20" Maximum Resolution 0.001mm / 0.00005" without Air Cushion

SKU:Code: 20-V3-700

Sale Sold out Regular price £3,411.53
Sale Sold out Sale price £3,411.53 Regular price £3,499.00
Excl. VAT
V3 Series 1D Height gauge for workshop use
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Measuring
  • range 0-711mm / 0-28"
  • display type Digital Touch Screen Black Mask
  • resolution 0.001mm / 0.00005"
  • accuracy 8μm
  • data output Yes
  • measuring force 0.75 - 1.5N
  • data storage No
  • max permissible errors 8μm
  • repeatability 2μm
  • frontal squareness deviation 15μm
  • power supply 240v
  • mass 24kg
  • stored data No
  • stored programs No
  • battery Yes
  • autonomy Up To 40 hours
  • drive method Manual
  • power supply 240v
  • suspension No
  • multiple references Max 9
  • programmable No
  • tolerances No
  • preset function Yes
  • repeatability on bore 4μm
  • repeatability on plane 2μm
  • fine adjustment No
  • dust cover Optional
  • setting master Yes
  • temperature compensation No
  • min max delta Yes
  • statistics No
Trimos V3 and V4

The height gauge model V3 has been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they will guarantee a robust, precise and reliable product. The display unit provides functions that are directly accessible and depicted with symbols easy to understand.
This allows for easy and quick handling even by unqualified personnel. The large 2-line Black Mask display offers an exceptional contrast in all lighting conditions, a unique characteristic on the market.
