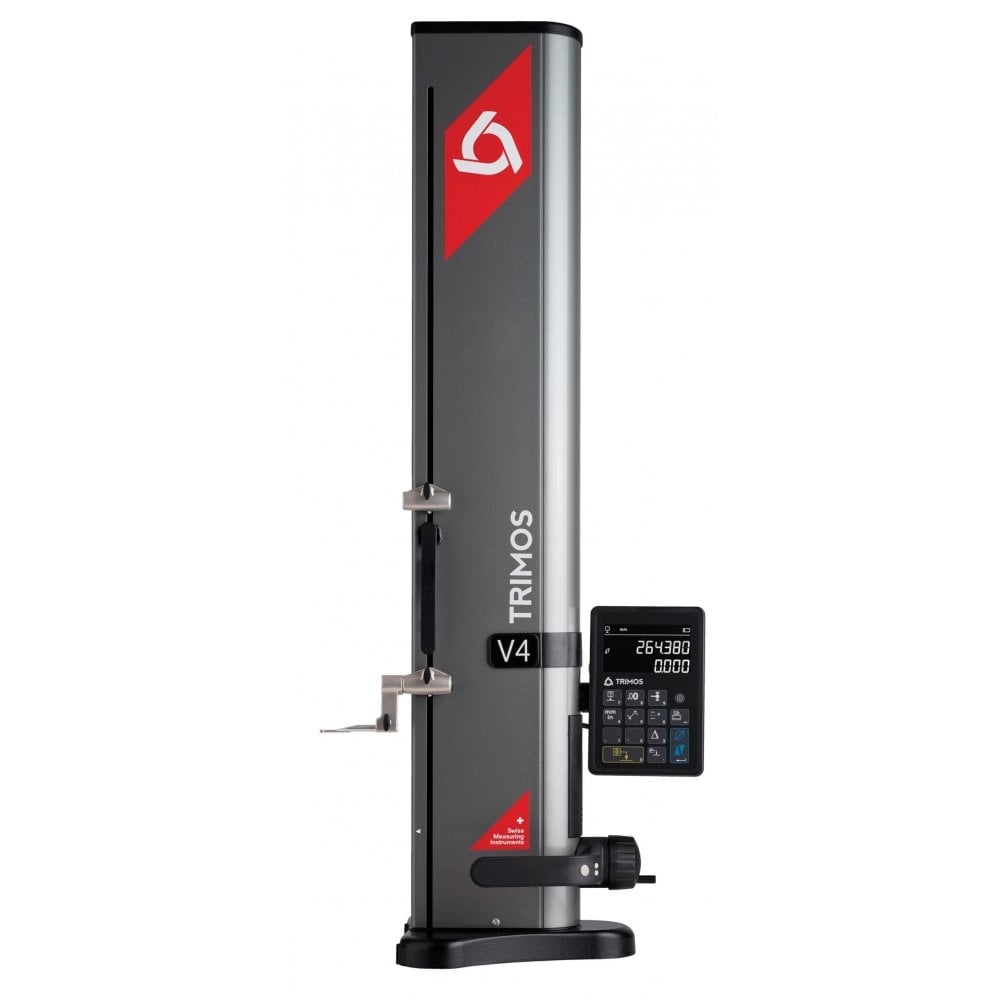

Trimos 20-V4-700 Digital Height Gauge V4, Range 0 - 711mm / 0 - 28", with Air Cushion
SKU:Code: 20-V4-700
Possible alternatives
Height Gauge
Mitutoyo QM 518-246 Height Gauge 600mm, with Air Floating, Metric Only
Regular price £3,519.00Sale price £3,519.00 Regular priceExcl. VAT£3,910.00
Height Gauge
Mahr 4429631 Height Gauge Digimar 816 CLT 0-600mm / 0-24", Motorised, with Air Cushion, Metric / Imperial
Regular price £5,309.00Sale price £5,309.00 Regular priceExcl. VAT£6,247.00
Height Gauge
Tesa 00730085 Tesa-Hite 700 Digital Height Gauge, Range 0 - 715mm / 0 - 28", with air cushion
Regular price £4,347.00Sale price £4,347.00 Regular priceExcl. VAT£4,830.00
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Measuring
- range 0-711mm / 0-28"
- display type Digital Touch Screen Black Mask
- resolution 0.001mm / 0.00005"
- accuracy 6μm
- data output Yes
- measuring force 0.75 - 1.5N
- data storage No
- max permissible errors 6μm
- repeatability 2μm
- frontal squareness deviation 15μm
- power supply 240v
- mass 24kg
- stored data No
- stored programs No
- battery Yes
- autonomy Up To 20 hours
- drive method Manual
- power supply 240v
- suspension Air cushion
- multiple references Max 9
- programmable No
- tolerances No
- preset function Yes
- repeatability on bore 4μm
- repeatability on plane 2μm
- fine adjustment Optional
- dust cover Optional
- setting master Yes
- temperature compensation No
- min max delta Yes
- statistics No
- brand Trimos
The height gauge model V4 has been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they will guarantee a robust, precise and reliable product. The display unit provides functions that are directly accessible and depicted with symbols easy to understand.
This allows for easy and quick handling even by unqualified personnel. The large 2-line Black Mask display offers an exceptional contrast in all lighting conditions, a unique characteristic on the market, and is equipped with a second probe holder, and air cushion for easy movement around the measuring table.
Entirely manufactured in Switzerland, the V4 ensures robustness, precision, and long-term reliability, making it ideal for challenging workshop conditions.
Its user-friendly display unit features easily accessible functions depicted with universally understandable symbols. The large 2-line “Black Mask” display offers exceptional contrast in all lighting conditions, setting it apart in the market.
Building on the success of the V3, the V4 height gauge extends capabilities with a second probe holder and an air cushion for effortless movement on the measuring table.
The handle boasts programmable function buttons, providing swift access to frequently used functions, ensuring efficient operation by both skilled and untrained personnel.
Explore the vast range of accessories available, enhancing the adaptability of the Trimos Height Gauge V4 to meet your specific measurement needs. Invest in precision, reliability, and efficiency – choose Trimos for a superior metrology experience
