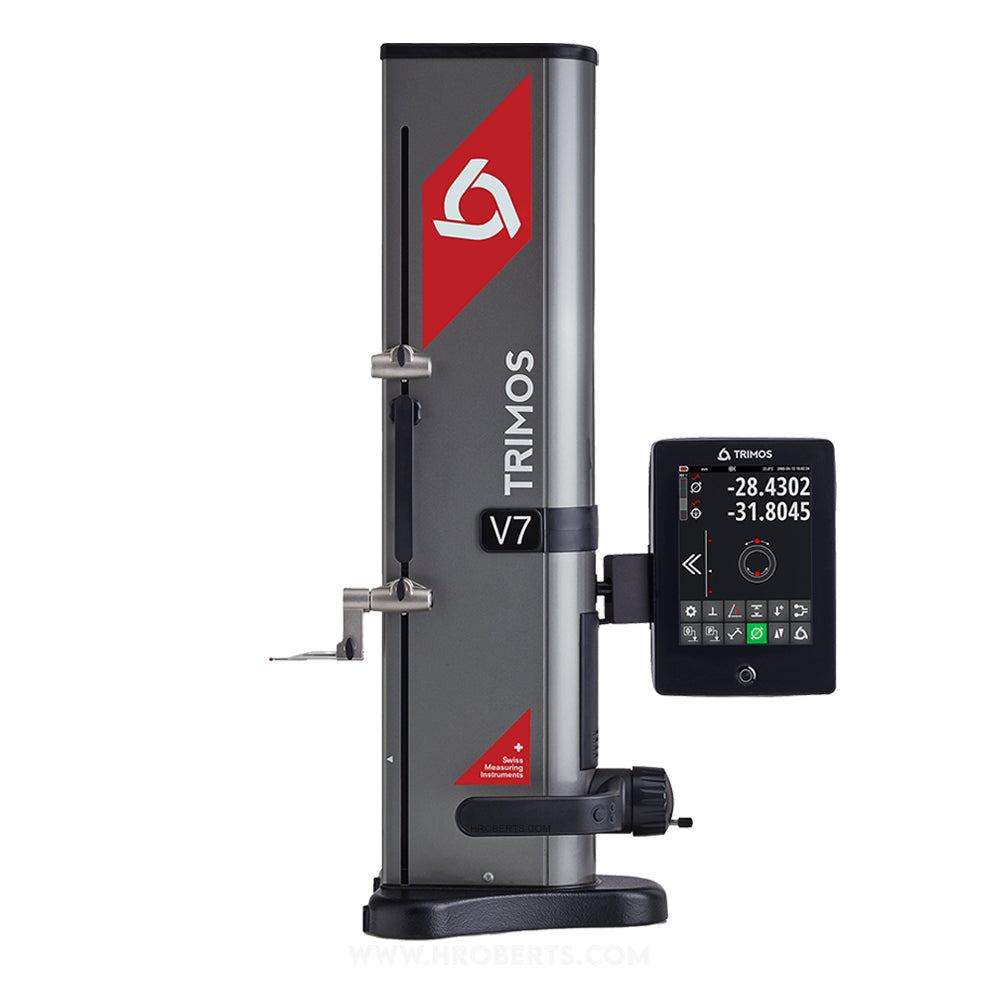

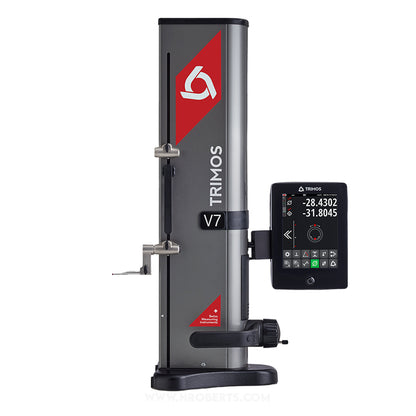

20-V7-400 Digital Height Gauge V7 Range 0 - 407mm / 0 - 16" with Extension 0 - 719mm / 0 - 28", Resolution 0.0001mm / 0.00001", 2D Programming Statistics with Air Cushion

SKU:Code: 20-V7-400

Sale Sold out Regular price £7,311.53
Sale Sold out Sale price £7,311.53 Regular price £7,499.00
Excl. VAT
V7 series 2D height gauge with manual and motorised displacement, air cushion and optional perpendicularity measurement.
  • The UKs Leading Metrology Distributor

  • Trusted by the biggest companies in the UK

  • Need more information? Ask a question or contact us.

View full details
  • type Measuring
  • range 0-407mm / 0-16"
  • display type Colour Touch Screen
  • resolution 0.0001mm / 0.000005"
  • accuracy 2 +l(mm)/400
  • data output Yes
  • measuring force 0.75 - 1.5N
  • data storage Via USB
  • max permissible errors 2 +l(mm)/400
  • repeatability 1μm
  • frontal squareness deviation 5μm
  • power supply 240v
  • mass 22kg
  • stored data Yes
  • stored programs Yes
  • battery Yes
  • autonomy Up to 12 hours
  • drive method Manual / Motorized
  • power supply 240v
  • suspension Air cushion
  • multiple references Max 9
  • programmable Yes
  • tolerances Yes
  • preset function Yes
  • repeatability on bore 2μm
  • repeatability on plane 1μm
  • fine adjustment No
  • dust cover Yes
  • setting master Yes
  • temperature compensation Yes
  • min max delta Yes
  • statistics Yes
Trimos V7

The V7 is equipped with a revolutionary displacement hand wheel which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven within the same gauge. Manufactured in their entirety in Switzerland, they will guarantee a robust, precise and reliable product. The display unit provides functions that are directly accessible and depicted with symbols easy to understand.

Equipped with a second probe holder, and air cushion for easy movement around the measuring table. whilst offering additional 2D functions and perpendicularity measurements, with results displayed on its easy to use tablet style display.
