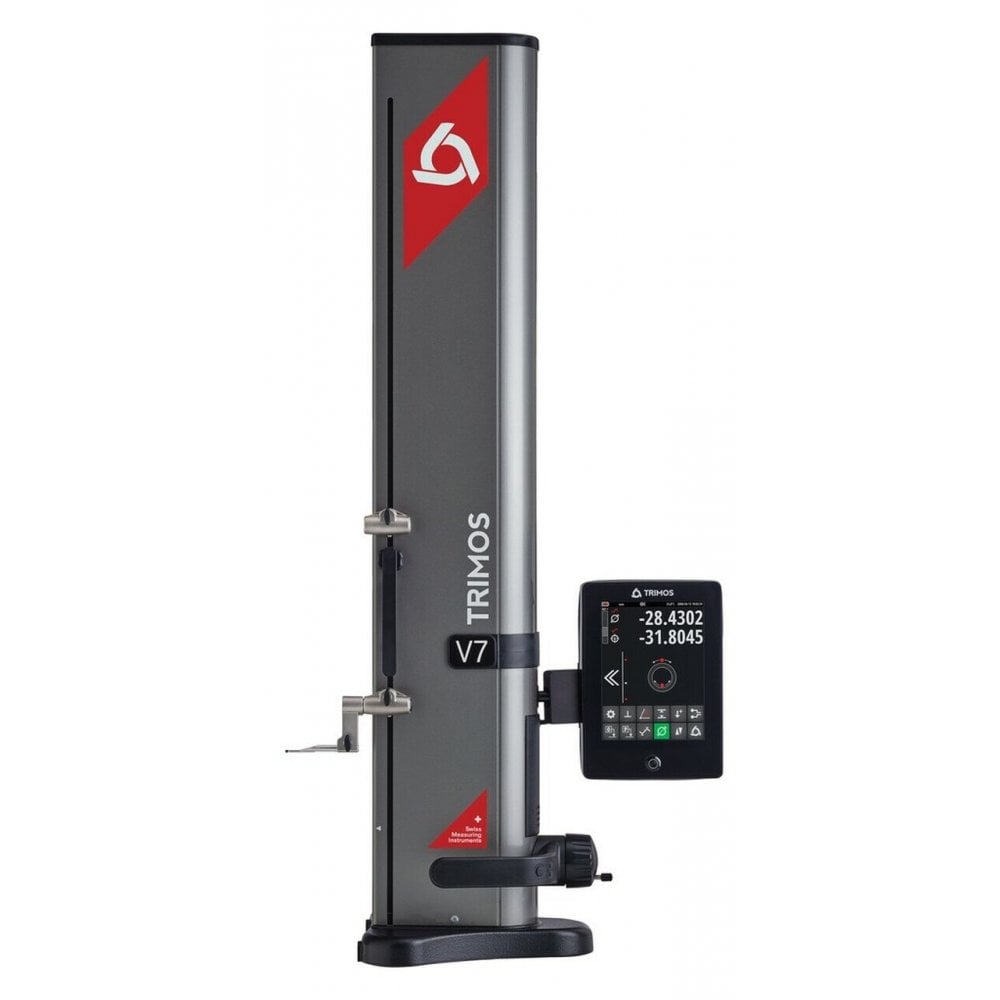

Trimos 20-V7-700 Digital 2D Height Gauge V7, Range 0 - 711mm / 0 - 28", Manual or Motorised, 2D Programming Statistics with Air Cushion
SKU:Code: 20-V7-700
Possible alternatives
Height Gauge
Mahr 4429601, 2D Height Gauge Digimar 817 CLT 0-600mm / 0-24" with 2D Functionality, Motorised, Air Cushion, Metric / Imperial
Regular price £6,242.40Sale price £6,242.40 Regular priceExcl. VAT£7,344.00
Height Gauge
Mitutoyo LH-600F - 518-360-13, 2D Height Gauge 0-600mm/0-24", Motorised with air cushion (No Grip Handle)
Regular price £6,300.00Sale price £6,300.00 Regular priceExcl. VAT£7,000.00
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
- type Measuring
- range 0-711mm / 0-28"
- display type Colour Touch Screen
- resolution 0.0001mm / 0.000005"
- accuracy 2 +l(mm)/400
- data output Yes
- measuring force 0.75 - 1.5N
- data storage Via USB
- max permissible errors 2 +l(mm)/400
- repeatability 1μm
- frontal squareness deviation 8μm
- power supply 240v
- mass 25kg
- stored data Yes
- stored programs Yes
- battery Yes
- autonomy Up to 12 hours
- drive method Manual / Motorized
- power supply 240v
- suspension Air cushion
- multiple references Max 9
- programmable Yes
- tolerances Yes
- preset function Yes
- repeatability on bore 2μm
- repeatability on plane 1μm
- fine adjustment No
- dust cover Yes
- setting master Yes
- temperature compensation Yes
- min max delta Yes
- statistics Yes
- brand Trimos

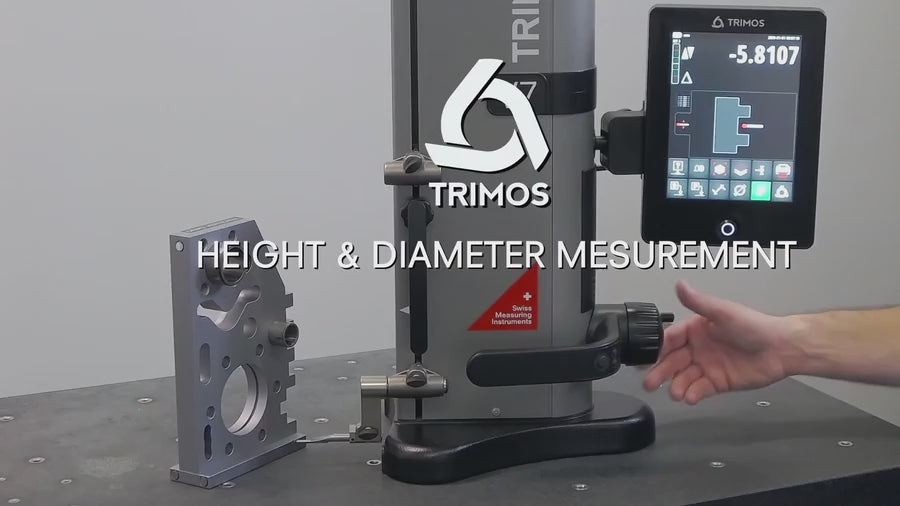

The V7 is equipped with a revolutionary displacement hand wheel which offers its user the choice of the displacement mode of the measuring carriage, either manual or motor-driven within the same gauge. Manufactured in their entirety in Switzerland, they will guarantee a robust, precise and reliable product. The display unit provides functions that are directly accessible and depicted with symbols easy to understand.
Equipped with a second probe holder, and air cushion for easy movement around the measuring table. whilst offering additional 2D functions and perpendicularity measurements, with results displayed on its easy to use tablet style display.
With their touch-display and lateral insert holders, which have proven their worth for decades, the V7 rank as universal instruments for the workshop.
In spite of an entirely revisited interface, Trimos instruments philosophy has been maintained and the user will have no difficulty whatsoever to rapidly take it in hand.
The touch display allows a maximal simplified use as no superfluous information is displayed and therefore the number of functions buttons is limited to what is strictly necessary.

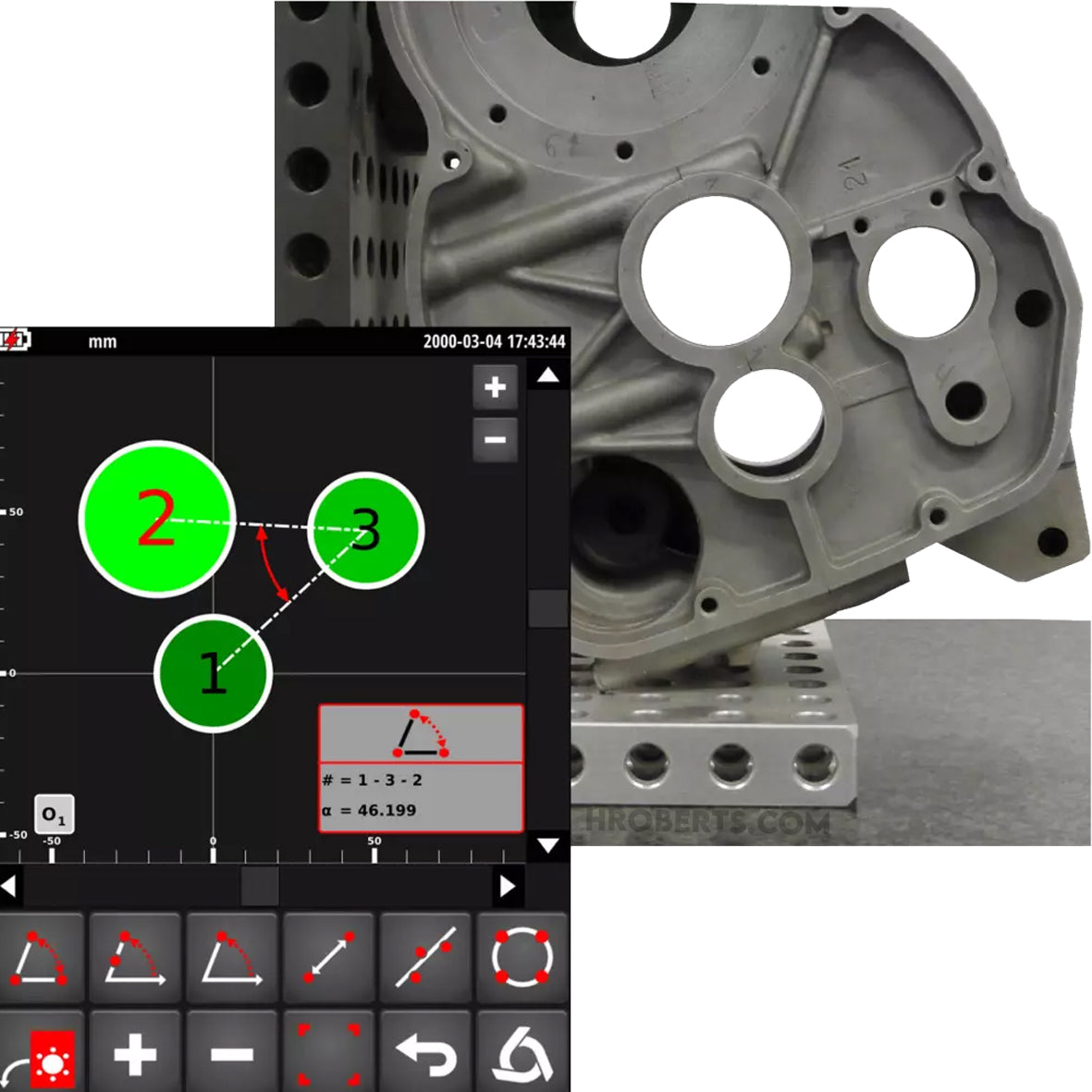

Functions, normally considered as complex, such as 2D, programming, statistics, become child’s play. It results in an unequalled ease of use and therefore a substantial increase in productivity.

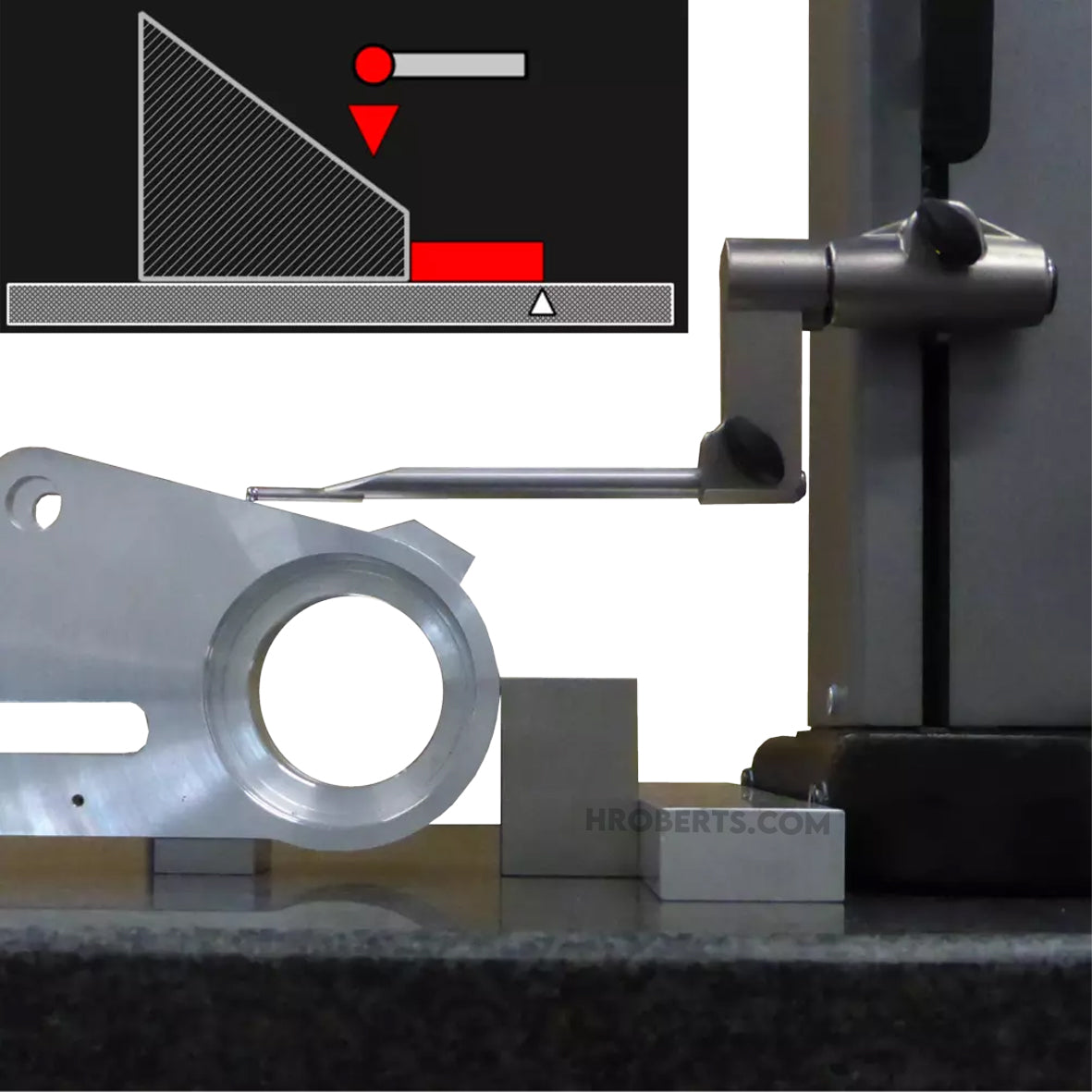

The pair of lateral insert holders comes from generations of instruments that have forged the reputation of Trimos. Their great robustness and flexibility allow the use of very diverse probes up to 400 mm long with a breath-taking repeatability.
The V7 are equipped with the revolutionary displacement handwheel allowing the user to choose either the manual or motorized displacement mode.
