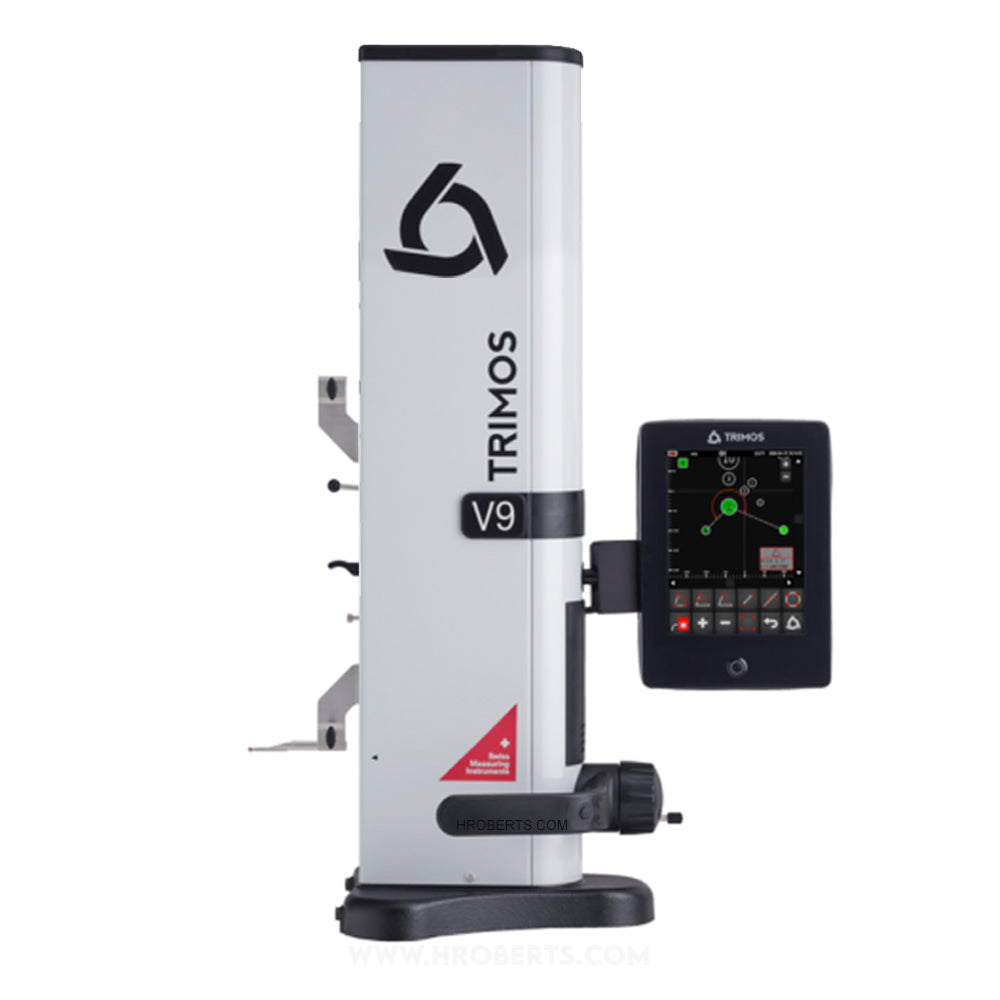

Trimos 20-V9-400 Digital Height Gauge V9 Plus Motorised Range 0 - 406mm / 0 - 16" with Extension 0 - 724mm / 0 - 28", Resolution 0.0001mm / 0.00001" , 2D Programming Statistics with Air Cushion
SKU:Code: 20-V9-400
Sale
Sold out
Regular price
£8,750.63
Sale
Sold out
Sale price
£8,750.63
Regular price
£8,975.00
Excl. VAT
V9 series high accuracy 2D height gauge with manual and motorised displacement, air cushion and optional perpendicularity measurement.
The UKs Leading Metrology Distributor
Trusted by the biggest companies in the UK
Need more information? Ask a question or contact us.
Specification
Specification
- type Measuring
- range 0-406mm / 0-16"

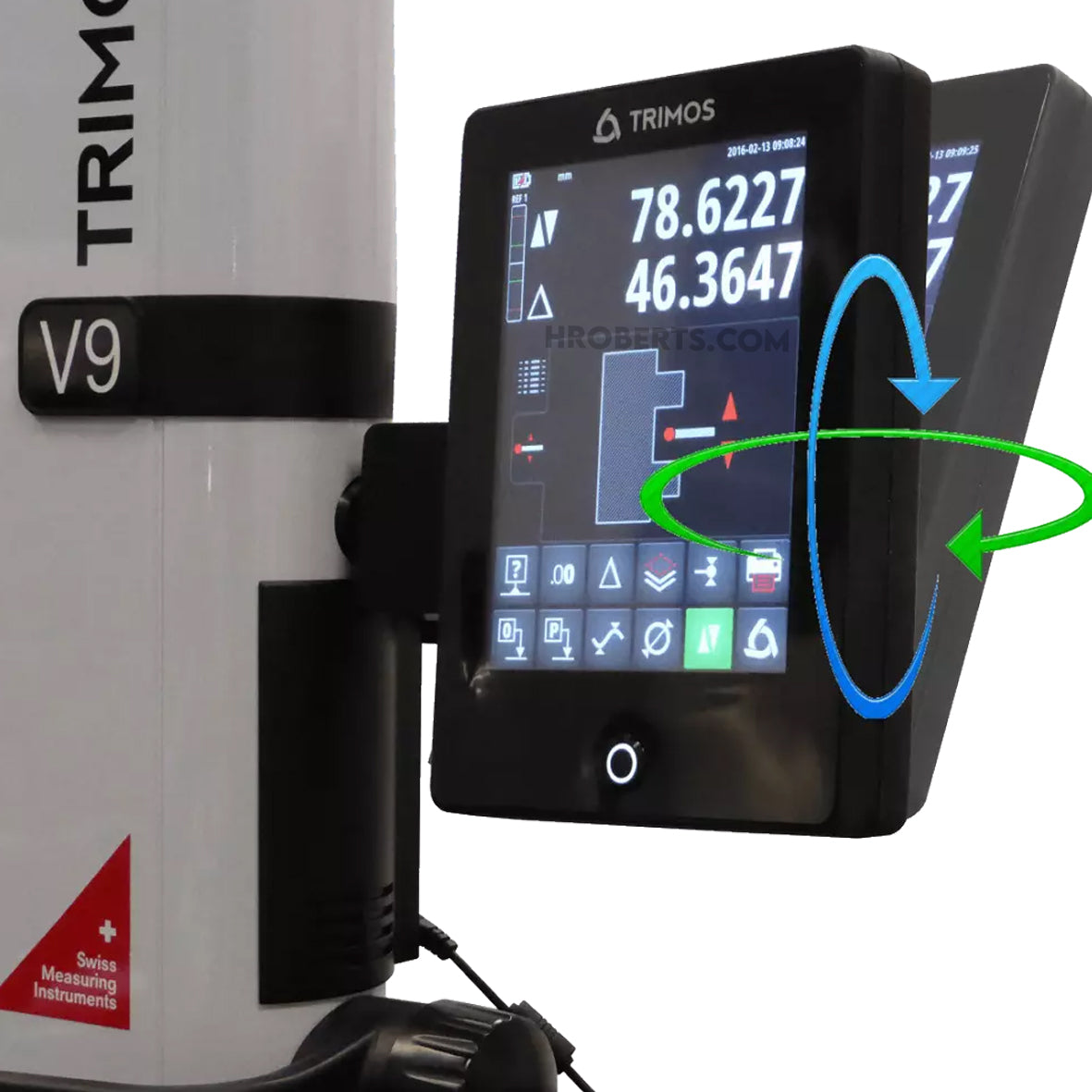

- display type Colour Touch Screen
- resolution 0.0001mm / 0.000005"
- accuracy 1.2 +l(mm)/1000
- data output Yes
- measuring force 0.75 - 1.5N
- data storage Via USB
- max permissible errors 1.2 +l(mm)/1000
- repeatability 0.4μm
- frontal squareness deviation 5μm
- power supply 240v
- mass 21kg
- stored data Yes
- stored programs Yes
- battery Yes
- autonomy Up to 12 hours
- drive method Manual / Motorized
- power supply 240v
- suspension Air cushion
- multiple references Max 9
- programmable Yes
- tolerances Yes
- preset function Yes
- repeatability on bore 1μm
- repeatability on plane 0.4μm
- fine adjustment Optional
- dust cover Yes
- setting master Yes
- temperature compensation Yes
- min max delta Yes
- statistics Yes
